Extraction & Fresh Air Fans
Adequate ventilation is vital in maintaining a healthy environment as:
- It prevents the accumulation of excessive humidity (which can cause condensation, mold leading to health problems)
- It provides air for fuel-burning appliances,
- Assists in removing cooking smells
- Assists in removing allergens and other irritants, such as tobacco smoke.
Sole Prince Engineering has a variety of general and air condition fans.
AIR-CONDITION FAN SERIES

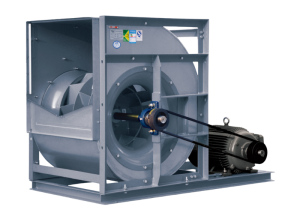

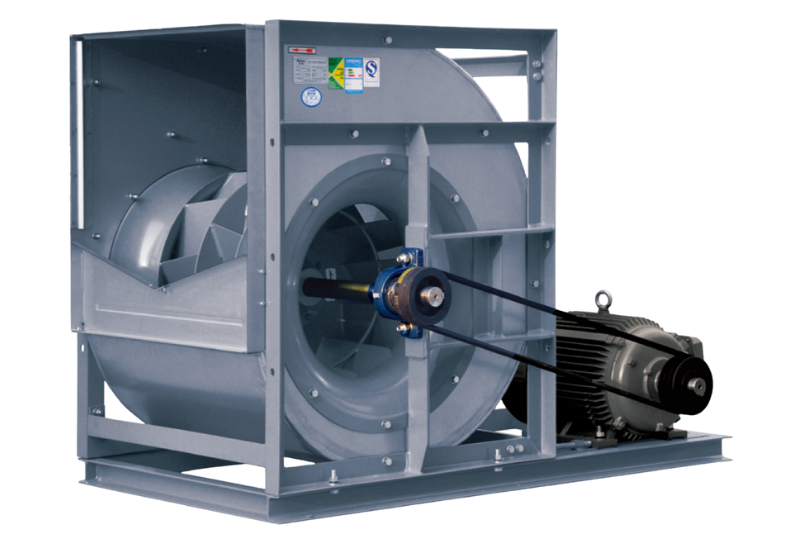

TDFT-R3
Series backward curved purification centrifugal fan
- Developed on the base of TDF backward curved centrifugal fan, double-inlet, easy application and installation
- Suit matching in central air-conditioner, purification equipment and so on
- 15 different sizes: 250, 280, 315, 355, 400, 450, 500, 560, 630, 710, 800, 900, 1000, 1120, 1250
- Air volume: 550- 227500 m3/h
- Pressure: maximum to 3730 Pa

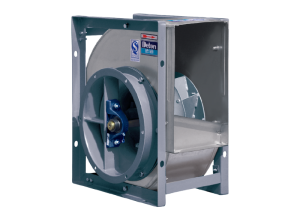

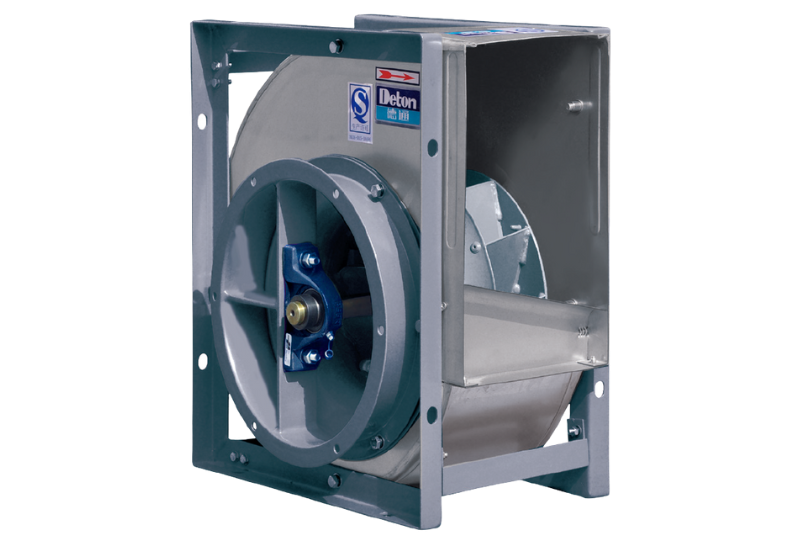

TDF-SW-R3 – Series single inlet centrifugal fan
- Belt-driving, backward curved blades impeller
- In metric system, single inlet
- Sizes: 200mm to 1000mm – 15 different sizes
- Air volume: 400-45000 m3/h
- Total pressure: 2770 Pa
GENERAL FAN SERIES

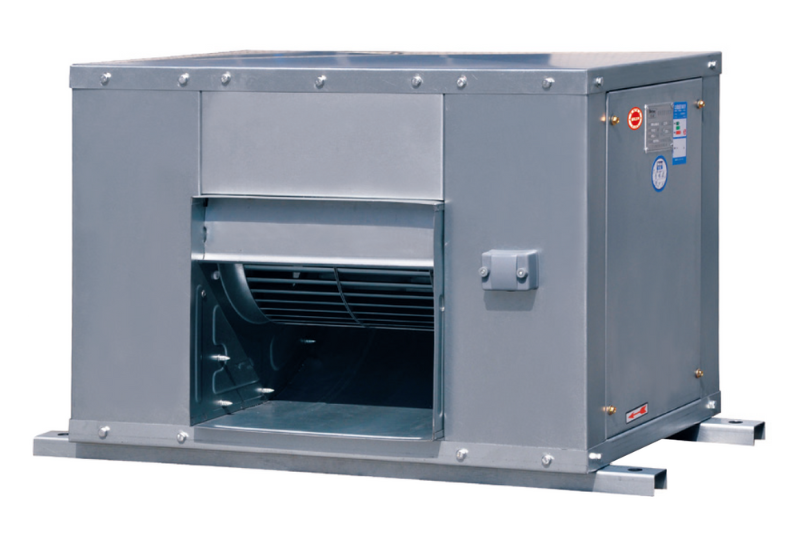

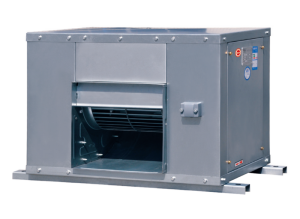

MTK-CB – Series super-thin centrifugal fan (direct-driving)
- Direct driving, single phase or three phase
- With a small cubage, convenient to hide and install. With examinable and repair doors at both sides and easy for maintenance
- High efficiency and static pressure and low noise
- Suitable for ventilation of industrial and mineral enterprises, hotel, and marketplace
- Size: 7-7 to 15-15 (10models)
- Air volume: maximum to 11700m3/h
- Total pressure: maximum to 700 Pa
8-09 – Series Centrifugal Fan
- Small air flow
- Forward curved impeller
- Application: suitable for high pressure air supply and forced ventilation, and also suitable for powder and granular material conveying. Widely used in building material, metallurgy, electric power and petroleum industry and also for forge furnace blowing
- Model: 6A, 6.5A, 7.1A, 7.1D, 9C, 12C
- Air Volume : 463-8260m3/h
- Pressure: 7869-12606 Pa

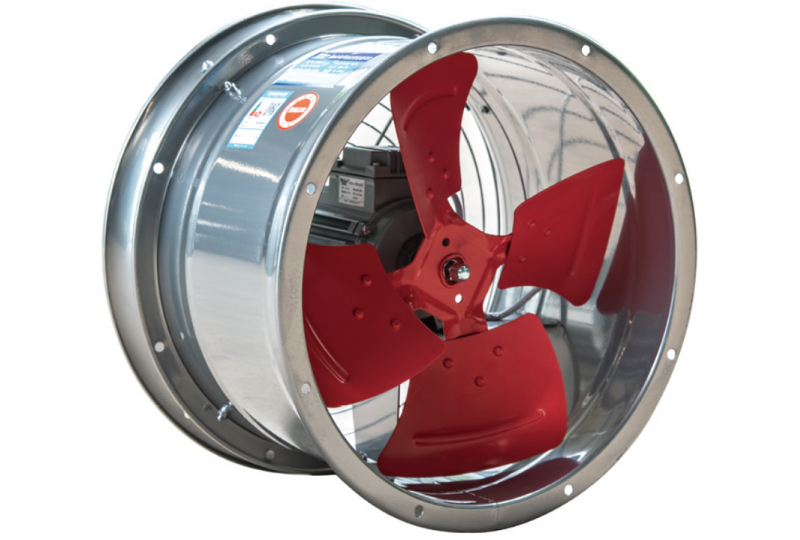

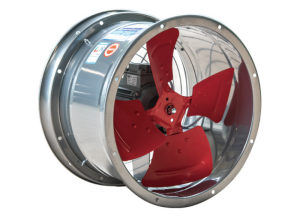

FG – Series Low Noise Axial Duct Fan
- This product has a forward ternary wrenched wide impeller
- With low noise, large air volume, high efficiency and stable pressure
- We have adopted advanced streamlined process to conduct the spray coating so the shell and impeller have an ever-lasting color, soft and light
- This product is suitable for the ventilation in industrial and mining enterprises, civil buildings and roof ventilation
- Air volume: 1600-30000m3/h
- Total Pressure : 65-400 Pa

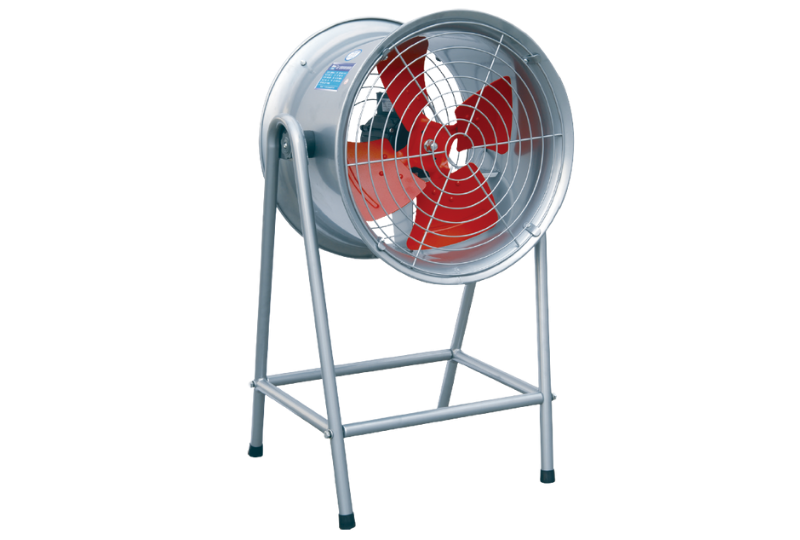

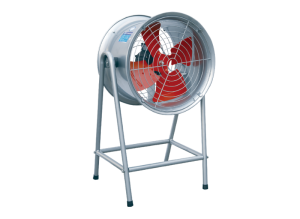

JGF – Series Low Noise Axial Fan
- This product has large air volume, low noise
- Suitable for ventilation in industrial and mining enterprises, civil buildings
- Air volume: 5300-24500m3/h
- Total pressure: 98-315 Pa
Sole Prince professional manufacturing system
Years of expertise in extraction and fresh air systems. Sole Prince has acquired experienced and skilled technical workers. Our workshop has a dedicated area for the assembly and manufacturing process. We are flexible and rapid to respond to non-standard products. Sole Prince Engineering has set special workflows that guarantee high quality products.
Quality Control System
Complete and advanced quality testing systems include impeller’s dynamic and static balance testing as well as correcting system.
Professional Service System
We apply the SoleChoice© method.
The SoleChoice© concept offers expertise, sound assistance and full technical support not just throughout your journey with Sole Prince Engineering but also after completion of your projects.
Tailor-Made Products
We provide tailor-made solutions for cold rooms, loading bays, high-speed doors, extractions & fresh air systems, insulation & cladding and cooling units. Our partners trust us to make their systems work safer, faster and more reliable.
