Telescopic Lip Hydraulic Dock Leveller

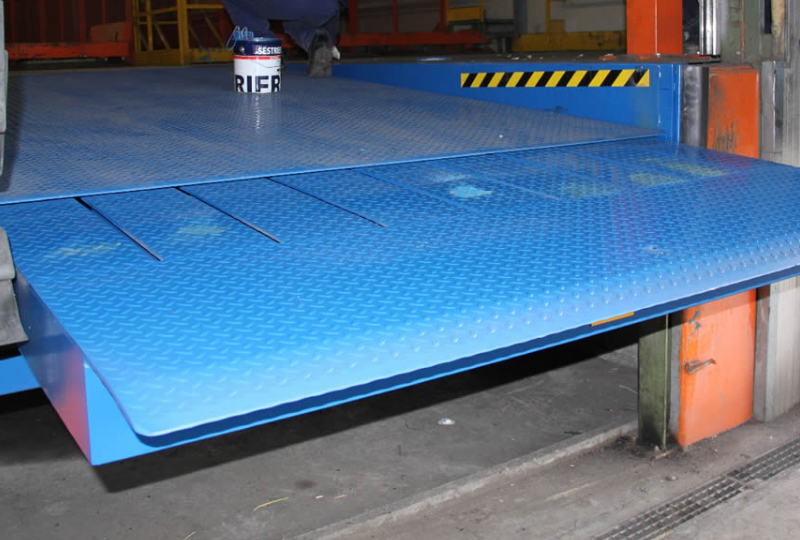

Sole Prince Engineering telescopic lip hydraulic dock leveller are most commonly used in areas that require high thermal insulation. The dock leveller is made of painted galvanized steel sheets and consists of lip, platform and frame. The primary platforms of the telescopic lip hydraulic leveller are made of drop pattern SD37 quality galvanized steel sheet that are 8 – 10mm thick. The C and L shaped profiles are welded to the main platform in order to strengthen them. The lips of the hydraulic dock leveller are made of drop pattern SD37 quality galvanized steel sheet that are 12 – 13mm thick. The leveller has a bevelled edge and is angled to adhere more efficiently to the truck. It can be lifted to 640mm above the loading area and can go up to 300mm below the loading area.
- The standard color of Sole Prince dock levelers is RAL7016. Different color options are available upon request
- All of our sheets are sandblasted to prevent rusting before being painted.
Application
- Loading Bay Traffic light for warehouses, docks…
- The lip length of Sole Prince telescopic lip hydraulic dock levellers is 1000mm
- It consists of a single piston
- All Sole Prince telescopic hydraulic dock levellers have 2 impact wedges
- The primary platforms of the telescopic lip hydraulic leveller are made of drop pattern SD37 quality galvanized steel sheet that are 8 – 10mm thick
- The carrying capacity is 6 tons
- The motor panel is IP54 class
- The depths of all Sole Prince telescopic hydraulic dock levelers are 600mm
- Vertical working range of the swinging lip hydraulic dock leveller is 400mm
