Vehicle Alignment System

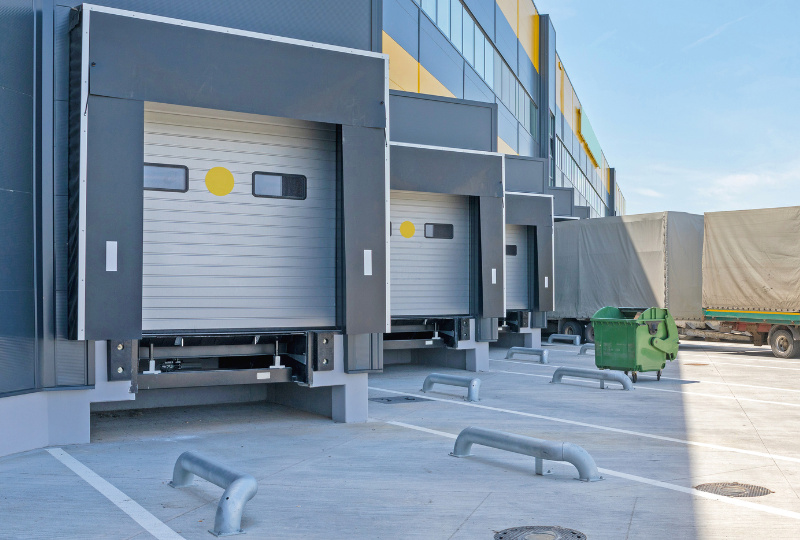

The vehicle alignment system for loading bays provides wheel guidance that are manufactured with soft radius bends. They are installed centrally to the loading bay, approximately 2 meters from the dock face. The reversing vehicle area between the alignment radius will ensure the vehicle docks safely and centrally onto the loading bay. Sole Prince Engineering has a wide range of wheel alignment guides for both new and existing loading bays. Our standard wheel alignment system can be delivered galvanised, or powder coated. They are also supplied with front flared entry section.
- Low profile option available for smaller than standard wheel diameter
- Sole Prince Engineering supplies installation, servicing and repair
- For industrial use at a competitive price
Application
- Alignment for warehouse loading bays
- Straight and flared options for desired entry onto the bay
- Bolt down and cast in options
- Galvanized and powder coated yellow as standard. Other options are available
- Tube diameter 165mm with 5mm thick wall
- Sole Prince wheel alignment guides include base plates complete with holes for anchoring down to a suitable concrete base.
- Guides can be supplied in either 140mm or 170mm tube diameter with optional hot dipped galvanised or powder coated finish.
Tailor-Made Products
We provide tailor-made solutions for cold rooms, loading bays, high-speed doors, extractions & fresh air systems, insulation & cladding and cooling units. Our partners trust us to make their systems work safer, faster and more reliable.
